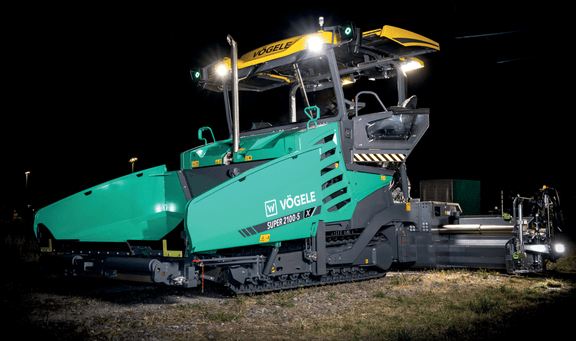

Vögele SUPER 2100-5 X road paver, a large-class paver featuring its extended tracked undercarriage, high-capacity hopper, and advanced screed system designed for wide, high-productivity asphalt paving on major road projects.
Vögele SUPER 2100-5 X
Large highway paver at up to 14 m, for demanding large scale road projects.
- 2.55 to 14 m
- Paving Width
- 1,100 t/h
- Max Laydown Rate
- 187 kW
- Engine Power
Talk to a specialist
Add SUPER 2100-5 X and any other machines to one enquiry. We do not publish prices, our team will call you to discuss specification.
Vögele Highway Class
4 builds, differing by paving width
Paving Width: 2.55 to 11.5 m, 2.55 to 7.5 m, 2.55 to 14 m, 3 to 18 m. Max Laydown Rate: 900 t/h, 600 t/h, 1,100 t/h, 1,800 t/h
Up to 14 m paving width
Removes longitudinal joints across lanes
1,100 t/h laydown rate
Large scale project duty
Large highway paver at up to 14 m, for demanding large scale road projects.
Fourteen metres covers more than two lanes in a single pass, removing the longitudinal joint that would otherwise run down the carriageway. Joints are where pavements fail first, so eliminating them is a durability decision as much as a productivity one.
Key Features
- Up to 14 m paving width
- Removes longitudinal joints across lanes
- 1,100 t/h laydown rate
- Large scale project duty
At a Glance
- Paving Width
- 2.55 to 14 m
- Max Laydown Rate
- 1,100 t/h
- Engine Power
- 187 kW
About Vögele: Asphalt pavers from mini class through highway class, including the SUPER 1400i produced in India since 2016.
View the full Vögele rangeFull technical data for the SUPER 2100-5 X. These figures also power the catalogue filters, so what you filter on is what is shown here.
Engine & Power
| Engine Power (kW) | 187 kW |
|---|
Paving Performance
| Paving Width (m) | 2.55 to 14 m |
|---|---|
| Max Laydown Rate (t/h) | 1,100 t/h |
Specifications are indicative and subject to confirmation against the current datasheet. Contact our team for available options and configurations.
How well this machine suits each type of work, rated by our team rather than derived from a generic rule.
Highway Construction
Best matchNew national highway alignments and multi-lane carriageways requiring high output paving and compaction.
97% fit
Airport & Runways
Best matchRunway, taxiway and apron construction demanding tight surface tolerance and evenness.
92% fit
The service schedule for the Vögele Highway Class, by hour meter reading. Every build in the family shares it. Our service team carries these out, and the parts each one needs are held in Kathmandu.
- 150 hGear oil and filter change
- 2100 hEngine oil and filter change
- 3500 hEngine oil, gear oil and filter change
- 41,000 hEngine oil, gear oil and hydraulic oil filter change
Readings are the manufacturer's intervals. Dust, gradient and duty cycle all shorten them in practice, so treat these as the latest a service should happen rather than the earliest.
Book a serviceDocumentation for the SUPER 2100-5 X. The spec sheet is generated from the same data as this page, so it can never contradict it.
SUPER 2100-5 X Specification Sheet
Branded, print ready, always current. Opens in the browser and saves as PDF.
Ask us for any document you need and we will send it directly.
Keep it running
Recommended Spare Parts
The parts most often needed for the SUPER 2100-5 X, ordered by how quickly their wear stops the machine. Add any of them to the same enquiry as the machine.
VOG-016Carry a spareDrive belt set, engine to pumpEngine to hydraulic pump transmissionVOG-012Carry a spareAuger gearbox oil, gear oil 90Auger drive gearboxVOG-018Carry a spareChassis grease, lithium EP2All grease nipples: chassis, screed linkage, tow pointsVOG-002Carry a spareEngine oil, 15W-40 dieselDeutz or Cummins engine, per service intervalVOG-005Carry a spareHydraulic oil, HVLP 46Propulsion, screed and auger hydraulicsVOG-006Carry a spareAir filter, primary and safety elementEngine intake
