Also for hireApollo Carmix · Self Loading Concrete Mixers
Apollo Carmix 23 FX
Also available as 3 TT, 30 FX, 4.3 TT, 46 FX
- 2.3 m³
- Batch Capacity
- 37 kW
- Engine Power

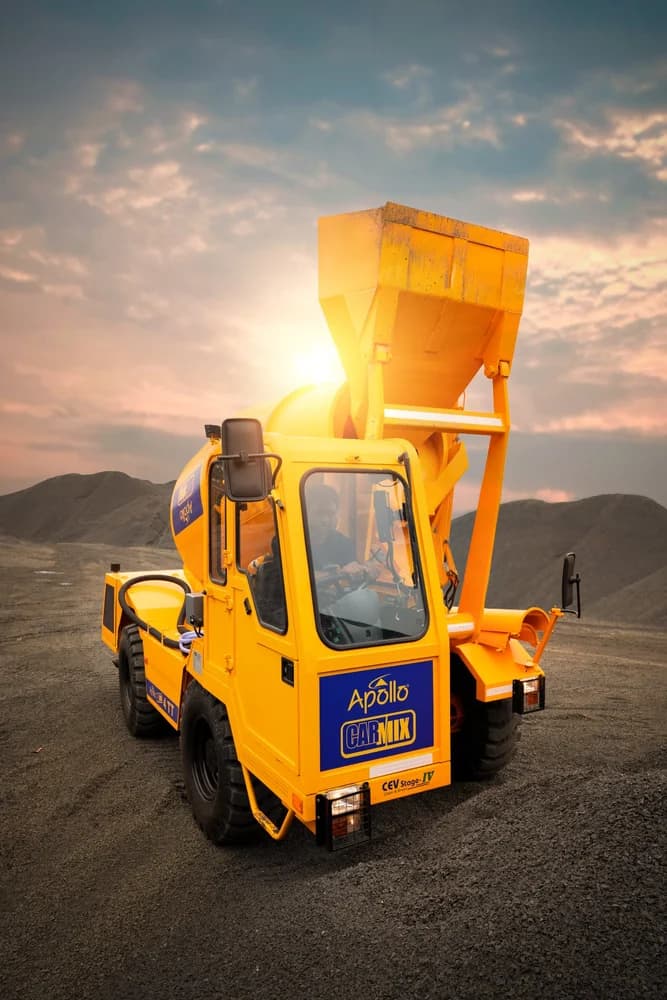

Apollo Carmix 30 FX self loading concrete mixer
Apollo Carmix 30 FX
Four wheel drive self loading concrete mixer with a 3 cubic metre batch, powered by a 76 HP Kirloskar engine.
- 3 m³
- Batch Capacity
- 57 kW
- Engine Power
Talk to a specialist
Add 30 FX and any other machines to one enquiry. We do not publish prices, our team will call you to discuss specification.
Apollo Carmix Self Loading Mixers
5 builds, differing by batch capacity
Batch Capacity: 2.3 m³, 3 m³, 3 m³, 4.3 m³, 4.6 m³. Engine Power: 37 kW, 57 kW, 57 kW, 82 kW, 82 kW
3 cubic metre batch capacity
Kirloskar 76 HP at 2200 rpm
Batches, mixes and places without a plant
Four wheel drive for site access
Four wheel drive self loading concrete mixer with a 3 cubic metre batch, powered by a 76 HP Kirloskar engine.
A self loading mixer batches, mixes and places concrete on its own, which removes the need for a batching plant and a fleet of transit mixers. On Nepali hill sites, and on scattered work where a plant cannot be established, it is often the only practical way to place concrete. The 30 FX takes 3 cubic metres per batch.
Key Features
- 3 cubic metre batch capacity
- Kirloskar 76 HP at 2200 rpm
- Batches, mixes and places without a plant
- Four wheel drive for site access
At a Glance
- Batch Capacity
- 3 m³
- Engine Power
- 57 kW
About Apollo Carmix: Self loading concrete mixers, from the Apollo and Carmix joint venture: the machine that batches, mixes and delivers on one chassis.
View the full Apollo Carmix rangeFull technical data for the 30 FX. These figures also power the catalogue filters, so what you filter on is what is shown here.
Capacity & Output
| Batch Capacity (m³) | 3 m³ |
|---|
Engine & Power
| Engine Manufacturer | Kirloskar Oil Engines |
|---|---|
| Engine Power (kW) | 57 kW |
| Emission Standard | BS-III |
Specifications are indicative and subject to confirmation against the current datasheet. Contact our team for available options and configurations.
How well this machine suits each type of work, rated by our team rather than derived from a generic rule.
Building Construction
Best matchHousing, commercial and institutional buildings, where concrete is batched or mixed on site and the constraint is access rather than output.
92% fit
Hydropower Projects
Strong matchAccess roads, dam works and embankments on hydropower sites, often at altitude and on steep gradients.
88% fit
Urban Roads & Streets
Strong matchCity streets, lanes and confined urban sites where compact machines and manoeuvrability matter more than output.
78% fit
Earthworks & Embankments
SuitableSubgrade preparation, fill compaction and embankment building ahead of surfacing.
66% fit
The service schedule for the Apollo Carmix Self Loading Mixers, by hour meter reading. Every build in the family shares it. Our service team carries these out, and the parts each one needs are held in Kathmandu.
- 150 hEngine service
- 2500 hEngine and gear oil change
- 31,000 hEngine oil, gear oil and hydraulic oil filter change
- 41,500 hEngine and gear oil change
Readings are the manufacturer's intervals. Dust, gradient and duty cycle all shorten them in practice, so treat these as the latest a service should happen rather than the earliest.
Book a serviceDocumentation for the 30 FX. The spec sheet is generated from the same data as this page, so it can never contradict it.
30 FX Specification Sheet
Branded, print ready, always current. Opens in the browser and saves as PDF.
Ask us for any document you need and we will send it directly.
Keep it running
Recommended Spare Parts
The parts most often needed for the 30 FX, ordered by how quickly their wear stops the machine. Add any of them to the same enquiry as the machine.
CRX-019Carry a spareDrive belt set, engine to pumpEngine to hydraulic pump transmissionCRX-022Carry a spareChassis grease, lithium EP2Drum bearings, articulation, loading arm pivotsCRX-011Carry a spareDrum reducer gear oilDrum rotation gearboxCRX-002Carry a spareEngine oil, 15W-40 dieselDiesel engine, per service intervalCRX-005Carry a spareHydraulic oil, HVLP 46Loading arm, drum rotation and steering hydraulicsCRX-006Carry a spareAir filter, primary and safety elementEngine intake
